Maximum Solar Utilisation
Automatic MPPT continuously tracks the highest available power from the solar panel array, improving pumping-system utilisation across varying sunlight conditions.
UPK9000SI Series
POWERING
INDIA'S
FIELDS
WITH THE SUN
Intelligent Energy. Dependable Water.
Advanced solar pump inverters engineered for reliable irrigation, maximum solar-energy utilisation and intelligent pump protection. Built to lead India's solar pumping future.
0.75–315 kW
Power range
220 V / 380 V
Motor voltage classes
MPPT
Automatic solar tracking
Product Catalogue
Product Details
Technical overview of the UPKAR UPK9000SI solar pump inverter series — designed for agricultural and off-grid water pumping applications across India.
| Brand | Series / Model | Product Type | Application | Motor Compatibility | Input Source | Key Features |
|---|---|---|---|---|---|---|
UPKAR
|
UPK9000SI Solar Pump Inverter Series | Solar Pump Inverter | Agriculture irrigation, borewell pumping, openwell pumping, field water supply, rural drinking water, livestock watering | Single-phase and three-phase AC pump motors 220 V & 380 V classes |
Solar PV Array Optional AC grid backup via changeover switch |
|
|
UPKAR
|
UPK9000SI-SS2 Group A — 1PH / 1PH | Solar Pump Inverter | Small single-phase irrigation pumps, household water supply, small farm borewell | Single-phase AC motors 220–240 V output |
Solar PV Array Max DC 450 V · MPP 330 V |
|
|
UPKAR
|
UPK9000SI-S2 Group B — 1PH / 3PH | Solar Pump Inverter | Small three-phase pump motors from single-phase solar supply | Three-phase AC motors 0–220 V three-phase output |
Solar PV Array Max DC 450 V · MPP 330 V |
|
|
UPKAR
|
UPK9000SI-4 Group C — 380 V Class | Solar Pump Inverter | Agricultural irrigation, large borewell systems, industrial water transfer, municipal water supply | Three-phase AC motors 380–440 V, 0–380 V output |
Solar PV Array Max DC 800 V · MPP 550 V |
|
UPK9000SI Series
Full Solar Pump Inverter Range
- Application
- Agriculture, borewell pumping, field water supply, rural drinking water, livestock
- Motor Compatibility
- Single-phase & three-phase AC motors — 220 V & 380 V classes
- Input Source
- Solar PV array — optional AC grid backup via changeover switch
- Key Features
-
- Automatic MPPT tracking
- Battery-free off-grid operation
- Intelligent pump protection
- Variable-frequency output (0–400 Hz)
- Morning auto-start / evening shutdown
- Optional GPRS remote monitoring
UPK9000SI-SS2
Group A · 1PH in / 1PH out
- Power Range
- 0.75 kW – 4 kW
- Application
- Small single-phase pumps, household water supply
- Max DC Voltage
- 450 VDC · Start-up 200 V · MPP 330 V
- Input Source
- Solar PV · DC input 200–450 V
UPK9000SI-S2
Group B · 1PH in / 3PH out
- Power Range
- 0.75 kW – 2.2 kW
- Application
- Small three-phase motors from single-phase solar supply
- Max DC Voltage
- 450 VDC · Start-up 200 V · MPP 330 V
- Input Source
- Solar PV · DC input 200–450 V
UPK9000SI-4
Group C · 380 V Class
- Power Range
- 0.75 kW – 315 kW
- Application
- Large irrigation, industrial water transfer, municipal supply
- Max DC Voltage
- 800 VDC · Start-up 300 V · MPP 550 V
- Input Source
- Solar PV · DC input 300–750 V
System Animation
How a Solar Pump Inverter Works
Follow the journey from sunlight to water. Click any component to learn more, or let the animation play automatically.
☀️
Sunlight
🔆
Solar Panels
⚡
PV Combiner Box
🔲
UPKAR Inverter
⚙️
AC Water Pump
💧
Water Delivery
01
Solar Energy Generated
Sunlight strikes the panel array, generating DC electricity. Solar cells progressively illuminate as light intensity builds through the morning.
02
DC Collection & Protection
DC energy travels to the PV combiner box. Solar strings are combined and protection components guard the circuit.
03
MPPT Optimisation
DC enters the UPKAR inverter. The MPPT algorithm continuously tracks the optimal operating point to obtain the highest available power from the solar array.
04
DC Converted to Controlled AC
The inverter converts DC power to controlled three-phase AC output. Output frequency varies with available solar energy and configured operating parameters.
05
Controlled Pump Operation
AC power drives the pump motor gradually. Output frequency increases smoothly. The pump follows available solar power throughout the day.
06
Reliable Water Delivery
Water flows to the field, borewell tank or irrigation channel. Pump output follows available solar energy, delivering water whenever sunlight is sufficient.
07
Optional Grid Support
Where configured, an optional AC/DC automatic changeover switch connects grid supply when solar input reduces. Optional feature — not included in every system.
08
Optional Remote Monitoring
An optional GPRS module enables remote visibility of running status, output frequency, pump status, solar input and fault status. Optional feature.
Why UPK9000SI
Built for Solar Pumping
Convert available solar power into controlled pumping performance with the UPK9000SI series — designed for agricultural irrigation, borewell pumping, water transfer and off-grid applications.
Battery-Free Pumping
Operate a pumping system directly from a correctly designed solar array without a battery bank, reducing system cost and maintenance requirements.
Controlled Motor Operation
Variable-frequency output provides controlled pump starting and operation. Pump speed follows available solar energy rather than starting hard at full voltage.
Intelligent Pump Protection
Support protective control for water shortage, dry-running risk, full-tank conditions, abnormal operation, morning automatic start and evening shutdown.
Optional Grid Support
Integrate an optional automatic AC/DC changeover configuration where grid backup is required. Clearly an optional addition — not part of every system.
Optional Remote Monitoring
Connect an optional GPRS module for remote operating visibility — running status, output frequency, pump status and fault alerts — where supported.
Made in India
Manufactured at Scale
Every UPKAR product leaves our Phagwara facility quality-checked and ready for the field. The same engineering discipline that goes into our engines and pumps goes into every solar pump inverter system we supply.
Star Export House
ISO 9001:2015
Made in India
Exporting to 20+ Countries

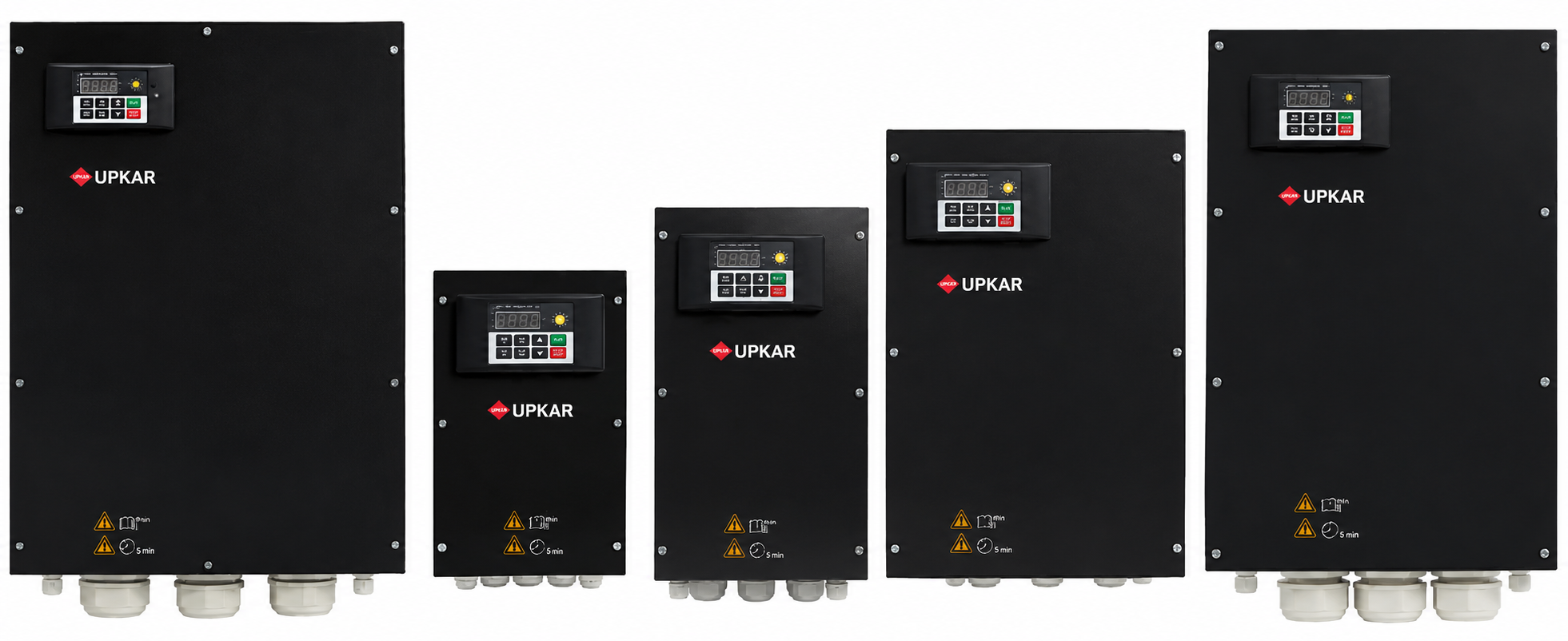

UPK9000SI Series
Solar Pump Inverter Range
Three voltage classes cover single-phase 220 V motors through to large three-phase 380 V pumps up to 315 kW. Select the class matching your motor voltage and PV array design.
AC Input1-phase, 220–240 V (±15% / +10%)
AC Output1-phase, 0–220 V
Max DC Voltage450 VDC
Start-up Voltage200 VDC
Lowest Working Voltage150 VDC
Recommended DC Input200–450 VDC
Recommended MPP Voltage330 VDC
Output Frequency0–400 Hz
| Model | Rated Power | Rated Input Current | Rated Output Current | Voltage Class |
|---|---|---|---|---|
| UPK9000SI-0R7G-SS2 | 0.75 kW | 9.3 A | 7.2 A | SS2 |
| UPK9000SI-1R5G-SS2 | 1.5 kW | 15.7 A | 10.2 A | SS2 |
| UPK9000SI-2R2G-SS2 | 2.2 kW | 24 A | 14 A | SS2 |
| UPK9000SI-004G-SS2 | 4 kW | 32 A | 25 A | SS2 |
AC Input1-phase, 220–240 V
AC Output3-phase, 0–220 V
Max DC Voltage450 VDC
Start-up Voltage200 VDC
Lowest Working Voltage150 VDC
Recommended DC Input200–450 VDC
Recommended MPP Voltage330 VDC
Output Frequency0–400 Hz
| Model | Rated Power | Rated Input Current | Rated Output Current | Voltage Class |
|---|---|---|---|---|
| UPK9000SI-0R7G-S2 | 0.75 kW | 9.3 A | 4.2 A | S2 |
| UPK9000SI-1R5G-S2 | 1.5 kW | 15.7 A | 7.5 A | S2 |
| UPK9000SI-2R2G-S2 | 2.2 kW | 24 A | 10 A | S2 |
AC Input3-phase, 380–440 V (±15% / +10%)
AC Output3-phase, 0–380 V
Max DC Voltage800 VDC
Start-up Voltage300 VDC
Lowest Working Voltage250 VDC
Recommended DC Input300–750 VDC
Recommended MPP Voltage550 VDC
Output Frequency0–400 Hz
| Model | Rated Power | Voltage Class | Application |
|---|---|---|---|
| UPK9000SI-0R7G-4 | 0.75 kW | -4 | Small 3PH 380 V pump |
| UPK9000SI-1R5G-4 | 1.5 kW | -4 | Small 3PH 380 V pump |
| UPK9000SI-2R2G-4 | 2.2 kW | -4 | Small 3PH 380 V pump |
| UPK9000SI-004G-4 | 4 kW | -4 | Borewell / openwell |
| UPK9000SI-5R5G-4 | 5.5 kW | -4 | Borewell / openwell |
| UPK9000SI-7R5G-4 | 7.5 kW | -4 | Borewell / centrifugal |
| UPK9000SI-011G-4 | 11 kW | -4 | Agricultural irrigation |
| UPK9000SI-015G-4 | 15 kW | -4 | Agricultural irrigation |
| UPK9000SI-018G-4 | 18.5 kW | -4 | Agricultural / industrial |
| UPK9000SI-022G-4 | 22 kW | -4 | Agricultural / industrial |
| UPK9000SI-030G-4 | 30 kW | -4 | Industrial water transfer |
| UPK9000SI-037G-4 | 37 kW | -4 | Industrial water transfer |
| UPK9000SI-045G-4 | 45 kW | -4 | Industrial / municipal |
| UPK9000SI-055G-4 | 55 kW | -4 | Industrial / municipal |
| UPK9000SI-075G-4 | 75 kW | -4 | Large irrigation / municipal |
| UPK9000SI-090G-4 | 90 kW | -4 | Large irrigation / municipal |
| UPK9000SI-110G-4 | 110 kW | -4 | Large scale |
| UPK9000SI-132G-4 | 132 kW | -4 | Large scale |
| UPK9000SI-160G-4 | 160 kW | -4 | Large scale |
| UPK9000SI-185G-4 | 185 kW | -4 | Large scale |
| UPK9000SI-200G-4 | 200 kW | -4 | Large scale |
| UPK9000SI-250G-4 | 250 kW | -4 | Industrial |
| UPK9000SI-280G-4 | 280 kW | -4 | Industrial |
| UPK9000SI-315G-4 | 315 kW | -4 | Industrial |
Configuration Guide
Find Your Inverter
Answer a few questions to identify a starting point. Final selection must always be confirmed with an authorised technical representative.
Recommended Starting Point
—
Complete the form on the left and click "Find Recommended Model" to see a suggested voltage class and model range.
Final inverter, motor, solar-array and protection-device selection must be verified by an authorised UPKAR technical representative using the pump nameplate, operating current, head, flow requirement and site conditions. This tool provides indicative guidance only.
Intelligent Protection
Pump Protection & Control
The UPK9000SI series supports protective control and automation logic for common pumping conditions. Not every function is available on every model — confirm with UPKAR before specifying.
Water Shortage Protection
Supports detection of low water level or water shortage conditions, stopping the pump to prevent dry-running damage.
Dry-Running Prevention
Protects against pump operation without water, which can damage seals, bearings and motor windings.
Full-Tank Stop
Supports automatic shutdown when the storage tank reaches the configured full level, avoiding overflow.
Morning Auto-Start
Supports automatic start-up when available solar power reaches the configured threshold in the morning.
Evening / Low-Solar Shutdown
Stops the pump automatically when solar input falls below a safe operating threshold, protecting motor from under-voltage.
Abnormal Condition Protection
Monitors for abnormal operating conditions and can stop or limit operation to reduce the risk of equipment damage.
Complete Ecosystem
UPKCB Solar DC Accessories
Complete the solar pumping system with UPKAR-compatible DC accessories. PV combiner boxes, protection devices and isolation components for a correctly protected installation.
UPKCB ABS Combiner Boxes
Compact enclosure range for smaller solar arrays.
- 2, 3 or 4 DC string inputs
- Maximum rated voltage: 1000 VDC
- Custom output configurations available
- Optional PV connectors
- Optional DC isolator
- Optional customised drawing
UPKCB ABS Models
UPKCB-MDP2/1N — 2 inputs
UPKCB-MDP3/1N — 3 inputs
UPKCB-MDP4/1N — 4 inputs
UPKCB-MDP3/1N — 3 inputs
UPKCB-MDP4/1N — 4 inputs
UPKCB Metal Combiner Boxes
Robust metal enclosures for larger commercial and industrial arrays.
- 2 to 24 DC string inputs
- IP65 enclosure, IK08 impact class
- 1000 VDC standard configuration
- 1500 VDC support depending on configuration
- Optional monitoring, optional DC isolator
- Custom input/output configurations available
UPKCB Metal Models
UPKCB-MD2/1 UPKCB-MD4/1 UPKCB-MD6/1
UPKCB-MD8/1 UPKCB-MD10/1 UPKCB-MD12/1
UPKCB-MD16/1 UPKCB-MD20/1 UPKCB-MD24/1
UPKCB-MD8/1 UPKCB-MD10/1 UPKCB-MD12/1
UPKCB-MD16/1 UPKCB-MD20/1 UPKCB-MD24/1
DC Protection Components
DC MCB 10 A – 63 A
DC MCB 80 A – 125 A
DC MCCB up to 1000 VDC
High-Voltage DC MCCB up to 1500 VDC
DC Surge Protection Devices
DC Fuse & Fuse Holders
DC Isolator Switches
PV Connectors
Optional AC/DC Auto Changeover (optional)
Where It Works
Applications
The UPK9000SI series is designed for agricultural, rural and industrial water-pumping applications across India and export markets.
Borewell Irrigation
Drive submersible borewell pumps from solar PV for reliable field irrigation without diesel or grid dependency.
Drip Irrigation
Provide consistent pressure to drip irrigation networks, maximising water efficiency for horticulture and row crops.
Sprinkler Irrigation
Power surface or submersible pumps for sprinkler systems covering larger agricultural areas.
Open-Well Pumping
Run openwell centrifugal or submersible pumps for irrigation from ponds, open wells and farm water bodies.
Canal Water Lifting
Lift canal or river water to elevated storage for gravity-fed irrigation systems in flat or elevated terrain.
Water-Tank Filling
Automatically fill elevated or ground-level storage tanks during daylight hours using solar energy.
Livestock Water Supply
Provide reliable drinking water for dairy farms, poultry operations and livestock holdings in off-grid locations.
Rural Drinking Water
Support village and community drinking-water supply schemes in areas with limited or unreliable grid access.
Industrial Water Transfer
Drive larger three-phase pumps for industrial process water, cooling water transfer and site utility applications.
Technical Resources
Downloads
Technical catalogues, installation guides and wiring references for the UPKAR UPK9000SI solar pump inverter system.
Product Catalogue
Download Catalogue
UPK9000SI Solar Pump Inverter
Complete technical catalogue for the UPK9000SI series — voltage classes (SS2, S2, -4), power range 0.75 kW to 315 kW, specifications, ratings and model selection guide.
Product Catalogue
Download Catalogue
UPKCB PV Combiner Box
Catalogue for the UPKCB series PV combiner boxes — ABS enclosures (2–4 inputs), metal enclosures (2–24 inputs), IP65, 1000 VDC / 1500 VDC, with protection components and accessories.
Installation Guide
Download Manual
Installation & Wiring Manual
Step-by-step installation module covering system wiring diagrams, PV string configuration, combiner box connections, inverter mounting, commissioning checklist and protection settings.
Can't find what you need? Contact our technical team at info@upkarintl.com or WhatsApp for specific datasheets, wiring diagrams or application notes.
